产品概述

超结MOSFET是一种新颖的中高压单极性功率器件,主要通过采用电荷平衡技术来实现极低的导通电阻性能,目前是电源领域最有生命力的功率器件。琴芯微SJMOS通过采用多次外延技术实现了极低导通电阻RDSON和FOM优值(RDSON*Qg),应用中可减少系统功率损耗并提高其转换效率,并且通过采用寿命控制技术对部分产品体二极管反向恢复特性进行了优化,实现了高性能和优异反向恢复特性产品。目前可提供电压范围600V~800V,电流范围4A~100A的系列产品。


特性介绍



●  外层外延工艺,改善EMI;


●  低FOM值,降低导通和开关损耗;


●  高EAS能力,优异反向恢复特性。


产品型号


Part Number

VDSS(V)ID(A)@25%
V(GS)th(v)typ
RDS(on)(Q)aVGS=10V25℃ max

QG(nc)

CFD
Package

QMSW60M041

600

72

2.5-4.5

0.041

140

-

TO-247

QMSW60M043CFD

72

3-5

0.043

140

Y

TO-247

QMSX60M082

47

2.5-4.5

0.082

72

-

TO-220F/TO-247

QMSW60M086CFD

47

3-5

0.086

72

Y

TO-247

QMSW60M115B

26.6

2-4

0.115

65

-

TO-247

QMSW60M150B

21.4

2-4

0.15

50

-

TO-247

QMSX60M160

20

2-4

0.16

38.5

-

TO-220F/0-220 TO-262 /T0-263/T0-247

QMSX60M160CFD

20

3-5

0.16

42

Y

TO-220F/TO-263

QMSX60M190B

17.6

2-4

0.19

40

-

TO-220F/TO-247

QMSY60M190B

18.6

2-4

0.195

40

-

DFN8X8

QMSA60M240

600

15

2-4

0.24

27

-

TO-220F

QMSA60M250CFD

15

3-5

0.25

27

Y

TO-220F

QMSX60M370

600

11

2.5-4.5

0.37

20

-

TO-220F/TO-220 TO-251/TO-252

QMSX60M350B

10.9

2-4

0.35

22.6

-

TO-220F/TO-252

QMSX60M600

8

2.5-4.5

0.6

13.4

-

TO-220F/TO-220 TO-251/TO-252

QMSX60M760

6

2.5-4.5

0.76

10.4

-

TO-220F/TO-220 TO-251/TO-252

QMSX60M900B

5

2-4

0.9

9.3

-

TO-220F/TO-251 TO-252

QMSX60M940

4

2.5-4.5

0.94

8.8

-

TO-220F/T0-220 TO-251/TO-252


Part Number

VDSS(V)ID(A)@25%
V(GS)th(v)typ
RDS(on)(Q)aVGS=10V25℃ max

QG(nc)

CFD
Package

QMSW65M045B

650

64.9

2-4

0.045

186

-T0-247

QMSW65M046CFD

72

3-5

0.046

140

Y

TO-247

QMSW65M092CFD

47

3-5

0.092

72

Y

T0-247

QMSX65M110B

29.1

2-4

0.11

75

-

TO-220F/T0-247

QMSX65M130B

25

2-4

0.13

65

-

TO-220F/TO-247

QMSX65M165B

20.4

2-4

0.165

50

-

TO-220F/T0-247

QMSX65M170

20

2-4

0.17

38.5

-

TO-220F/T0-220/TO-262 TO-263/TO-247/DFN8X8

QMSA65M180CFD

20

3-5

0.18

42

Y

TO-220F

QMSX65M210B

16.8

2-4

0.21

40

-

TO-220F/T0-263 TO-220/T0-262

QMSX65M260

15

2-4

0.26

27


TO-220F/TO-220 TO-262/TO-263/DFN8X8

QMSX65M280CFD

15

3-5

0.28

27

Y

TO-220F/T0-263

QMSX65M320B

12.3

2-4

0.32

27

-

TO-262/TO-220F/TO-263 TO-220/T0-251/TO-252/DFN8*8

QMSX65M380B

10.4

2-4

0.38

22.6

-

TQ-220F/TO-252/TQ220FT +0-263/10-22070-251 10-262/DFN88

QMSX65M390

11

2,5-4,5

0.39

20

-

TO-220F/TO-220 TO-251/T0-252/DFN8*8

QM5X65M450B

9.2

2-4

0.45

20

-

TO-220F/T0-220/TO-263 TO-262/TO-251/TO-252

QMSX65M550B

7.6

2-4

0.55

16

-

TO-220F/TO-263/TO-262 T0-251/T0-252

QMSA65M640B

6.7

2-4

0.64

14

-

TO-220F/T0-220/TO-263 TO-262/T0-251/TO-252/DFN8X8

QMSX65M650

8

2.5-4.5

0.65

13.4

-

TO-220F/T0-220/T0-251 T0O-252/DFN8*8

QMSX65M810

6

2.5-4.5

0.81

10.4

-

TO-220F/T0-220 TO-251/T0-252

QMSX65M830B

5.5

2-4

0.83

11.2

-

TO-220F/TO-263/TO-262 TO-251/T0-252

QMSX65M990

650

4

2.5-4.5

0.99

8.8

-

TO-220F/TO-220 TO-251/TO-252

QM5X65M1K0B

4.8

2-4

1

9.3

-

TO-220F/T0-251 TO-252

QMSA65M1K5

3

2.5-3.5

1.5

5.5

-

TO-220F

QMSA65M1K8

3

2-4

1.8

6.6

-

TO-220F/T0-251 TO-252

QMSX65M1K6

5

2.5-3.5

1.6

5.5

-

TO-220F/TO-251 T0-252


Part Number

VDSS(V)

ID(A)@25%

V(GS)th(v)typ

RDS(on)(Q)aVGS=10V25℃ max

QG(nc)

CFD

Package

QMSA70M180B

700

19.5

2-4

0.18

50

-TO-220F

QMSX70M190

20

2-4

0.19

38.5

-

TO-220F/TO-220/TO-262 TO-263/TO-247

QMSA70M200CFD

20

3-5

0.2

42

Y

TO-220F

QMSA70M230B

16

2-4

0.23

40

-

TO-220F

QMSX70M290

15

2-4

0.29

27

-

TO-220F/TO-220 TO-262/TO-263

QMSX70M300CFD

15

3-5

0.3

27

Y

TO-220F/TO-263

QMSX70M360B

11.6

2-4

0.36

27

-

TO-263/TO-220F TO-251/TO-252

QMSX70M420B

11

2-4

0.42

22.6


TO-263/TO-220F TO-251/TO-252

QMSX70M430

11

2.5-4.5

0.43

20

-

TO-263/TO-220F TO-251/TO-252

QMSX70M600B

7.3

2-4

0.6

16

-

TO-220F/TO-251 TO-252

QMSX70M700

8

2.5-4.5

0.7

13.4

-

TO-220F/TO-220 TO-251/TO-252/DFN8*8

QMSX70M710B

6.4

2-4

0.71

14

-

TO-220F/TO-252

QMSX70M900

6

2.5-4.5

0.9

10.4

-

TO-220F/TO-220 TO-251/TO-252

QMSD70M910B

5.2

2-4

0.91

11.2

-

TO-252

QMSX70M1K1B

4.5

2-4

1.1

9.3

-

TO-220F/TO-251 TO-252

QMSX70M1K1

4

2.5-4.5

1.1

8.8

-

TO-220F/TO-220 TO-251/TO-252

QMSX70M1K5

5

2.5-3.5

1.5

5.5

-

TO-220F/T0-251 TO-252

QMSX80M250B

800

18

2-4

0.25

43

-

TO-220F/TO-247

QMSX80M380B

13

2-4

0.38

29

-

TO-220F/TO-252

QMSX80M670B

8

2-4

0.67

17.4

-

TO-220F/TO-252

QMSX80M850B

6,6

2-4

0.85

13.7

-

TO-220F/TO-252

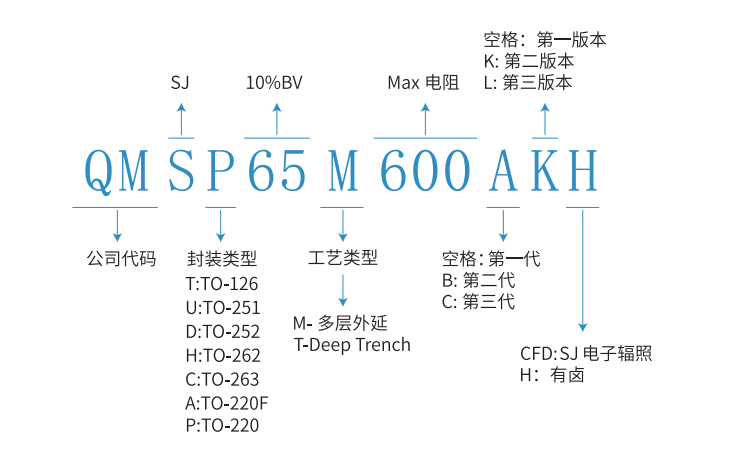

命名规则










封装形式





1683682226311218.jpg1683682232467163.jpg1683682239970764.jpg1683682248174011.jpg1683682828261108.jpg

TO-220

TO-220F

TO-247

TO-252

TO-263
