VDMOS 兼具双极晶体管与普通 MOS 器件的技术特点，可适配开关应用、线性应用等多类工况。琴芯微 VDMOS 采用条形元胞结构，通过工艺优化调整 N-JFET 结构，弱化 JFET 效应、降低器件导通电阻，有效减少器件工作温升，提升系统转换效率，同时具备良好的 EAS 耐受性能。产品电压覆盖 500V~800V、电流覆盖 2A~25A，可满足多场景选型需求。
● Crss 与 Qg 参数偏低，有助于降低开关损耗； | ● 导通阻抗较低，有助于降低导通损耗； |
● 具备良好的浪涌耐受能力。 |

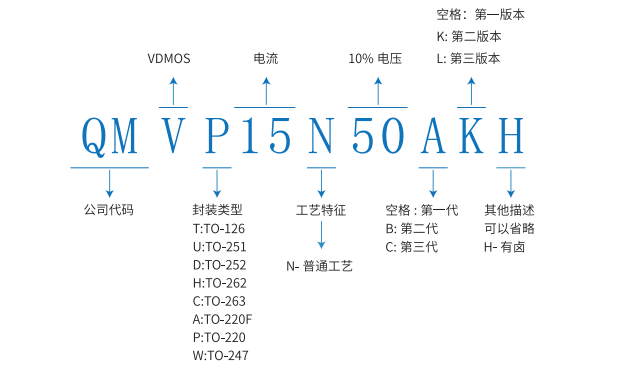

| Part Number | VDSS(V) | ID(A)@25'C | V(GS)th(V) | RDS(on)(Q) @VGS=10V 25*C max | QG(nC) | Package | |
| min | max | ||||||
| QMVX5N5OCCFD | 500 | 5 | 3.5 | 5 | 1.4 | 14.5 | TO-251 TO-252 |
| QMVA13N50F | 13 | 2 | 4 | 0.36 | 36 | TO-220F | |
| QMVX13N50B | 13 | 2 | 4 | 0.38 | 36 | TO-220F TO-220 | |
| QMVX14N50B | 14 | 2 | 4 | 0.39 | 38 | TO-220F TO-220 | |
| QMVX18N50B | 18 | 3 | 4 | 0.26 | 73 | TO-220F/TO-220 TO-247/TO-3P | |
| QMVX20N50B | 20 | 3 | 4 | 0.24 | 75 | TO-220F/TO-220 TO-247/TO-3P | |
| QMVA20N50F | 20 | 2 | 4 | 0.21 | 60 | TO-220F | |
| QMVX2N60B | 600 | 2 | 2 | 4 | 3 | 6.3 | TO-220F/TO-220 TO-251/TO-252/TO-126 |
| QMVX3N60BCFD | 3 | 2 | 4 | 2.9 | 9.3 | TO-220 TO-252 | |
| QMVX4N60B | 4 | 2 | 4 | 2,1 | 12 | TO-220F/TO-220/TO-262 TO-251/T0-252/TO-263 | |
| QMVX7N60B | 7 | 2 | 4 | 1 | 21 | TO-220F/TO-220/TO-262 TO-251/TO-252/TO-263 | |
| QMVX7N60ECFD | 7 | 3 | 4 | 1.1 | 28 | TO-220F/TO-220/TO-262 T0-251/T0-252/T0-263 | |
| QMVX10N60B | 10 | 3 | 4 | 0.7 | 33 | TO-220F/T0-220 T0-262/T0-263 | |
| QMVX12N60B | 12 | 3 | 4 | 0.6 | 44 | TO-220F/TO-220 TO-262/TO-263 | |
| QMVX2N65B | 650 | 2 | 2 | 4 | 4.5 | 14.5 | TO-252 TO-251 |
| QMVX2N65BK | 2 | 2 | 4 | 4 | 6.3 | TO-220F/TO-251 TO-252 | |
| QMVX4N65B | 4 | 2 | 4 | 2.4 | 10 | TO-220F/TO-220/TO-262 TO-251/TO-252/TO-263 | |
| QMVX4N65F | 4 | 2 | 4 | 2.3 | 11 | TO-220F/TO-251 TO-252 | |
| QMVX7N65B | 7 | 2 | 4 | 1.1 | 20 | TO-220F/TO-220/TO-262 TO-251/TO-252/TO-263 | |
| QMVX7N65F | 7 | 2 | 4 | 1.1 | 19 | TO-220F TO-252 | |
| QMVA8N65B | 8 | 2 | 4 | 1.1 | 20 | TO-220F | |
| QMVX10N65B | 10 | 2 | 4 | 0.85 | 33 | TO-220F/TO-220 TO-262/TO-263 | |
| QMVA10N65F | 10 | 2 | 4 | 0.82 | 29 | TO-220F | |
| QMVX12N65B | 12 | 2 | 4 | 0.65 | 38 | TO-220F/TO-220 TO-262/TO-263 | |
| QMVA12N65F | 12 | 2 | 4 | 0.62 | 36 | TO-220F | |
| QMVX20N65B | 20 | 2 | 4 | 0.35 | 60 | TO-220F TO-220 | |
| QMVX20N65F | 20 | 2 | 4 | 0.38 | 60 | TO-220F TO-220 | |
| QMVX4N70F | 700 | 4 | 3 | 5 | 2.5 | 15.5 | TO-220F/TO-251 TO-252 |
| QMVX4N150D | 1500 | 4 | 3 | 5 | 4 | 39 | TO-220F/TO-247 TO-3PF |
 |  |  |  |
TO-220 | TO-220F | TO-251 | TO-252 |
